H05VVD3H6-F （0.75mm2-1mm2 3-24 芯，25-60 芯）
H05VVD3H6-F Application Scope:Suitable for traveling inside the elevator free-hanging suspended over 80 meters in length, and moving speed no more than 4 m / s , cable can also be used as a travel lift and cable reel cableH05VVD3H6-F Structure:Conductor: stranded bare copper or tinned copper comply with VDE 0295 CLASS 5 & CLASS 6, IEC 228Insulation: PVC / TI2 PVC comply with DIN VDE 0281.Color ID: in line with standard HD 308Reinforcement:Galvanized steel wireSheath material: PVC / TM2 PVCApplication Standard:HD21, VDE 0281, EN 50214-2006H05VVD3H6-F Characteristics and Compliance:Features: excellent resistance to flex;good oil resistance, cold resistance, moisture resistance excellent wear resistance, withstand greater mechanical stressConformity Approval: ROHS CEH05VVD3H6-F Technical Parameters:Rated Voltage: 300/500V Test Voltage: insulation thickness ≤ 0.6: 1500V,Final test: 2000VMin. Bending RadiusCable laying installation allows bending radius should be not less than 6 times the cable small side.Temperature Range: -15 To +70 ℃flame test: VDE0472 804 part by Class B Experimental and IEC332-1

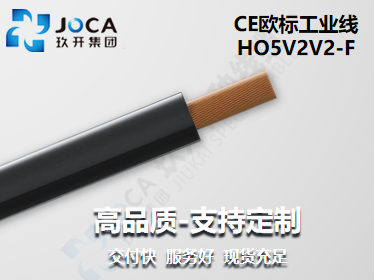

H05V2V2-F，H05V2V2H2-F
H05V2V2-F，H05V2V2H2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H05V2V2-F，H05V2V2H2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH05V2V2-F，H05V2V2H2-F Features & Conformity:Features: Super fine conductor, flexible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH05V2V2-F，H05V2V2H2-F Technical Parameters:Rated Voltage：300/500VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +90℃Movable Installation：-5 To +90℃
H03VV-F，H03VVH2-F
H03VV-F，H03VVH2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H03VV-F，H03VVH2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH03VV-F，H03VVH2-F Features & Conformity:Features: Super fine conductor, flexible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH03VV-F，H03VVH2-F Technical Parameters:Rated Voltage：300/300VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +70℃Movable Installation：-5 To +70℃
